ADD-ONS & UPGRADES

Elevation Mapping

The Elevation Mapping tool scans your entire field with precision within a few centimetres, revealing hidden drainage issues and uneven spots, so you can fix them before they cause injuries or rainouts.

Pinpoint the dips and slopes that put players at risk
Receive a field condition report
from scan to insights in 72 hours

Contact for price

contact sales

order elevation map

Know your field

Clear reports and maps show slopes,
low spots, and drainage issues - no guesswork

Play it safe

Smoother surfaces mean
fewer injuries, bad bounces, and rain delays

Do more with what you've got

Improve and extend the life of
existing fields without costly rebuilds

IMPROVE YOUR CONDITIONS

Discover the hidden issues on your fields

Elevation mapping highlights numerous actionable issues:

Uneven surfaces can lead to injuries and bad bounces
Elevation Mapping pinpoints hidden slopes and low spots with centimetre-level accuracy, enhancing player safety.
Standing water means lost match time
Our scan detects drainage issues that are undetectable with manual inspection. Fix problems before they flood your schedule.

OPTIMISE YOUR PLAY

Start your field in a new light

Master your field dynamics with detailed performance analytics, allowing you and your team to make the most of their game.

Inherited fields = limited options
Most field managers inherit problems that have been there since the fields were graded. Elevation Mapping helps you optimise what’s already there.
Gain Actionable Field Intelligence
Utilise comprehensive diagnostic data to fully understand the root zone, moisture levels, and playability metrics unique to your specific pitch.

FAST DELIVERY

From scan to insights in 72 hours

Leveraging autonomous, high-precision scanning technology, we capture intricate details across every surface of your area of interest. The final report is a detailed analytical tool, giving you immediate insights into complex drainage, slope variation, and surface integrity issues.

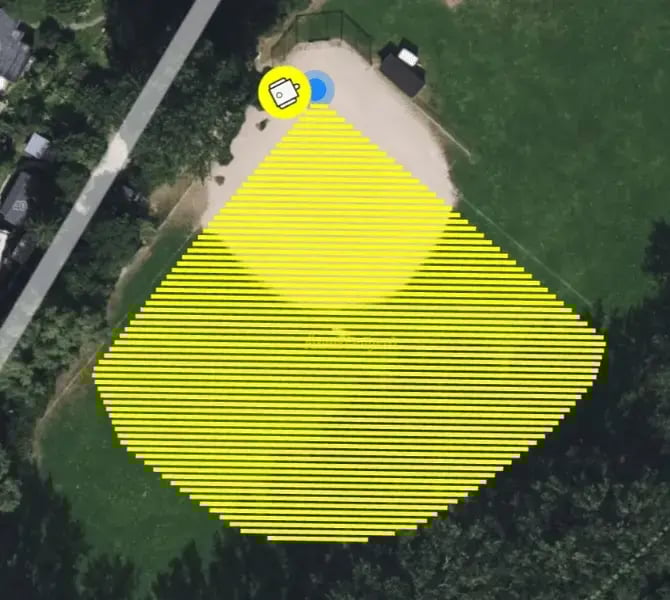

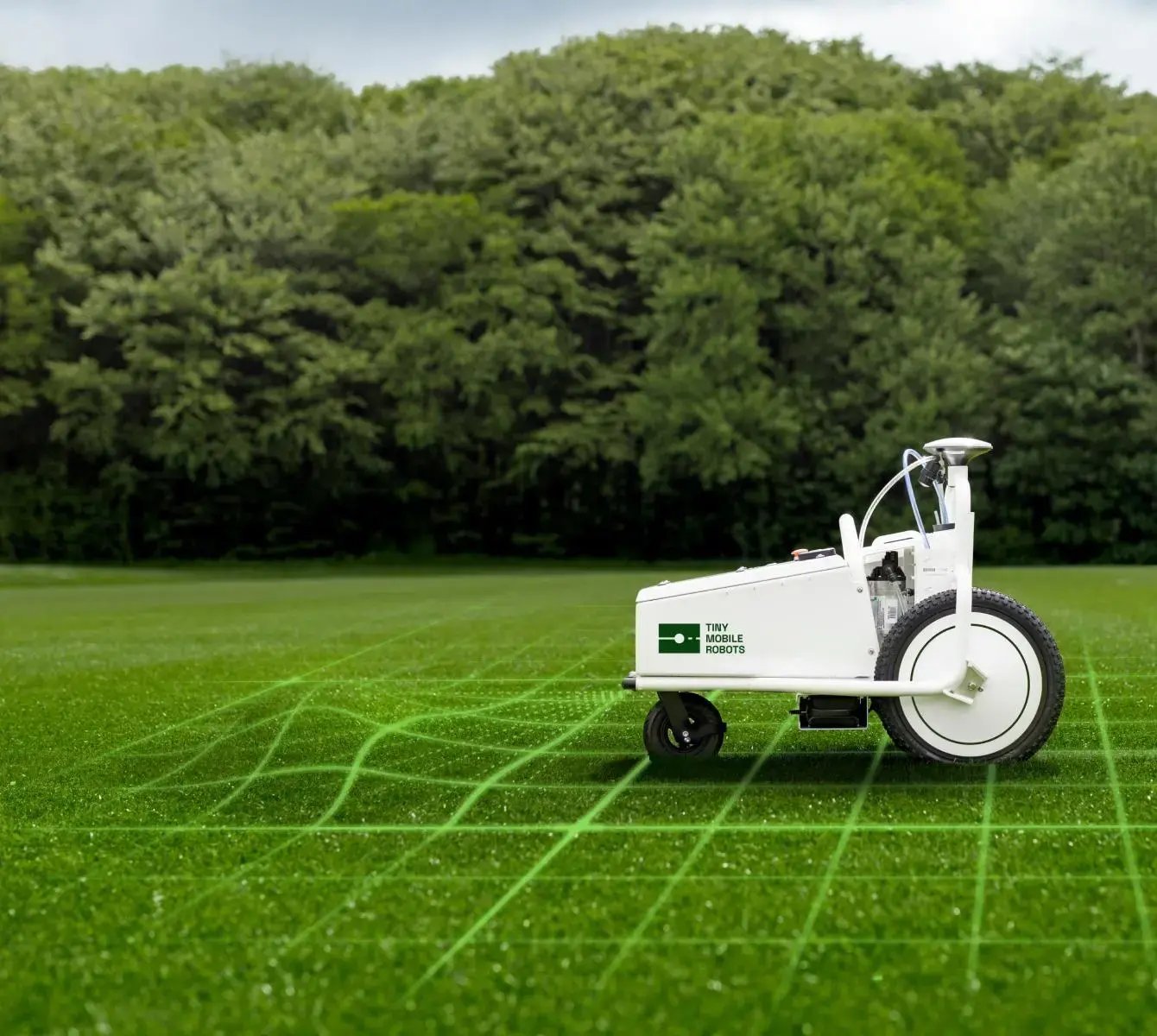

Autonomous precision mapping with GNSS captures every inch of your field

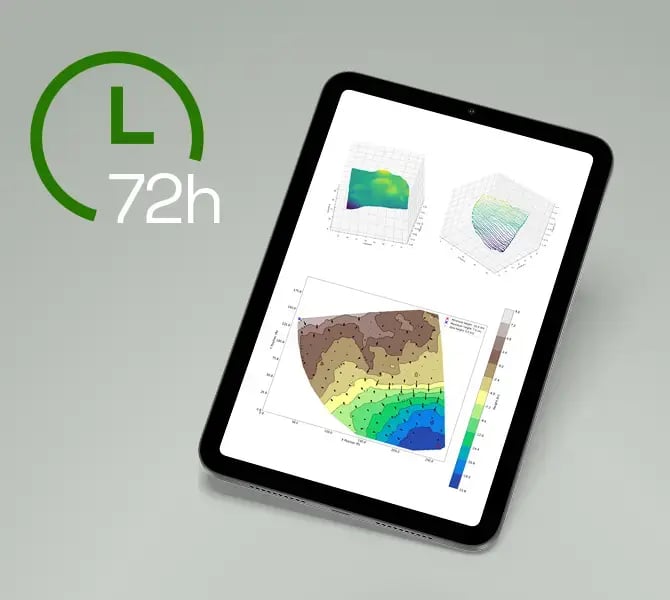

Reports provide colour-coded maps and detailed analysis highlighting slope, drainage, and surface issues

Step by step guide

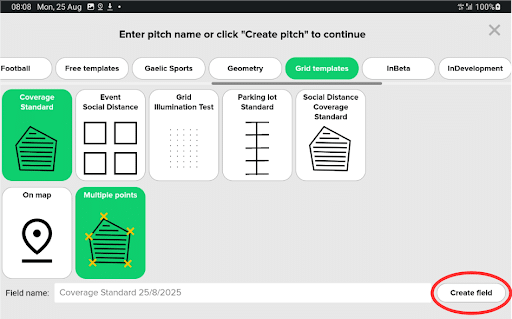

1. Creating a new field

Set up a new scanning pattern by going into the Grid Templates folder and selecting the “Coverage Standard” with “Multiple points”.

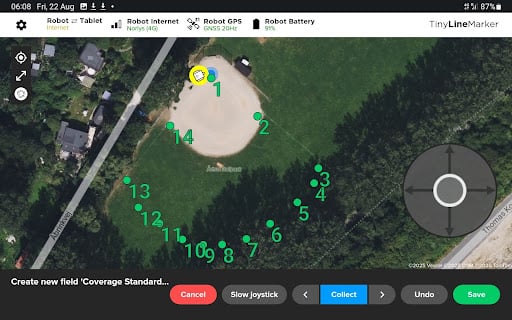

2. Field measurements

Collect boundary points by driving the robot around the area you want to scan – a point will be collected when you press the blue Collect button. For curves (grass/dirt- or fence line), record approximately 10 points.

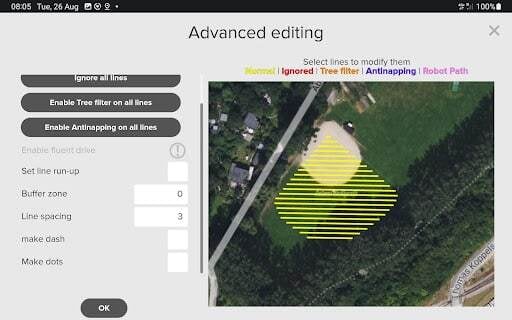

3. Setting the line spacing

Ensure the line spacing is 10ft (3m). If not, tap the field (red dot appears), go to “Modify” > “Edit” > “Advanced”, set spacing to 3m, and continue to next step.

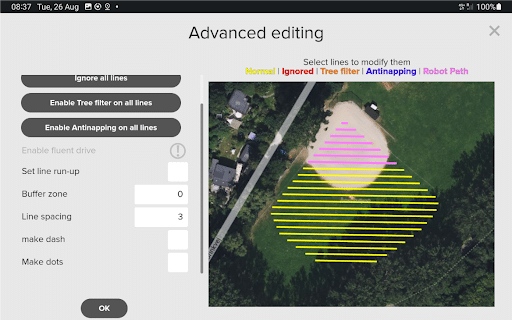

4. Converting lines to robot path

Make sure the robot is set not to paint. To disable painting, convert all driving lines into robot paths by going to Advanced Settings and tapping each line until it turns pink then press “OK” and “Save”.

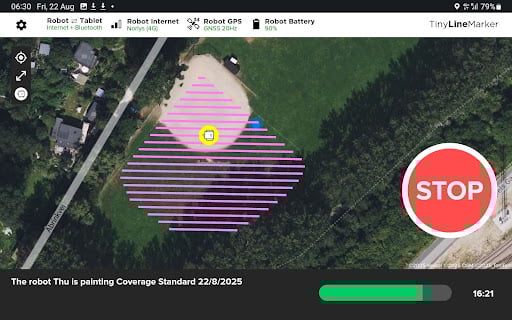

5. Scanning process

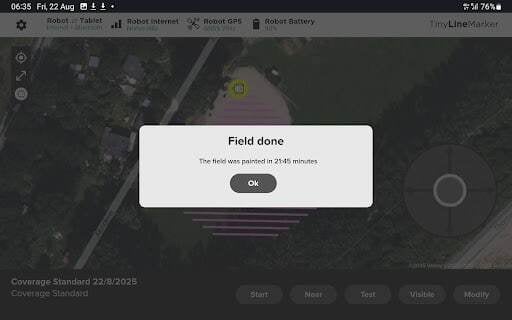

Tap the field you want to scan and press “Start”. The robot will then begin scanning your field.

IMPORTANT: Record the start and stop times of the scan, as these must be entered into the form on the landing page.

6. Data handover

After completing the scan, fill in the form located on this page and follow the instructions on the website to order your report and book a time for file handover.

IMPORTANT: Do not have the robot powered on for more than 4 hours between the scan and the scheduled handover. Within this 4-hour window, the robot can still be used.

Want to know more? Visit our Knowledge Center for FAQs and more details about the Elevation Mapping tool.
